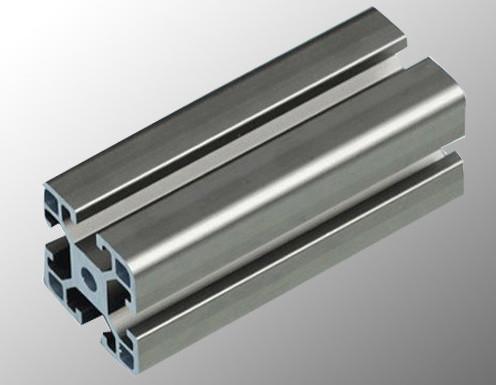

Alunimum T Slots, Alunimum V Slots, Industrial Aluminum Profiles
With Germany imported machines and professional engineers, we can do high technics customized aluminium alloy extrusion and profile as per your drawings or samples.
Product Details:
| Product Name |
T-SLOTTED ALUMINUM EXTRUSION |

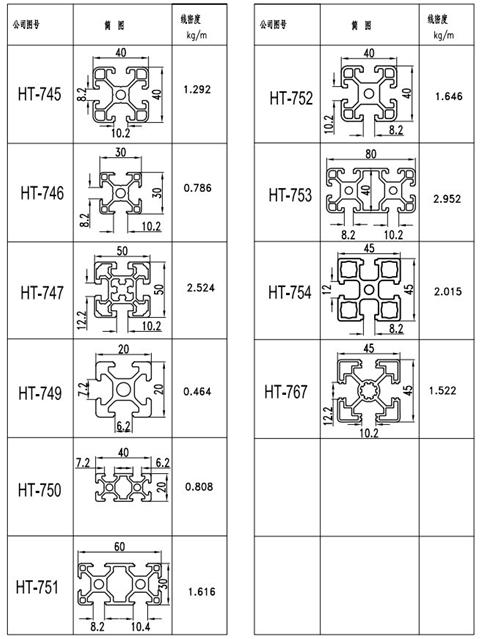

| Size | 10/15/20/25/30/35/40/45/50/55/60/65/70/75/80/85.....series and Custom Made size |
| Grade | 6061/6063-T5/T6 |
| Standard | GB/5237-2004 |
| Certification | ISO9001 |
| Material | Aluminum |
| Color | Clear, Black, any custom-made colors for options. |
| Surface | Mill finish,Anodizing,Sand Blasting,Powder Coating,etc |
| Deep Processing | Machining,Cutting,Drilling,Threading,Bending,Etc |
| Used |
Building,Industry,Machinery,Assembly stations,Cellular manufacturing workstations,Linear motion devices and other purposes.... |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
