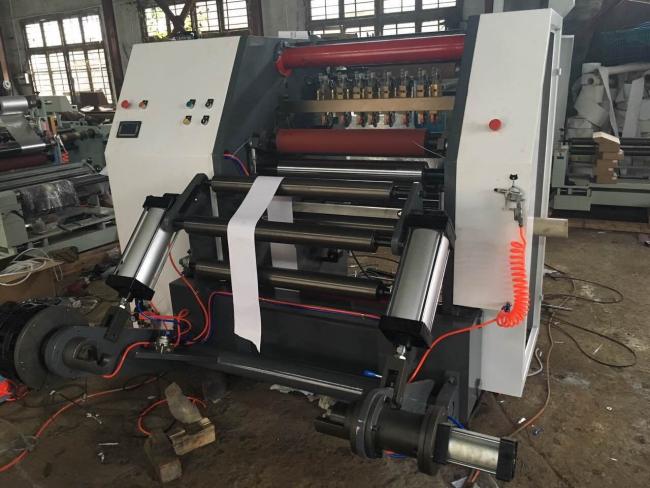

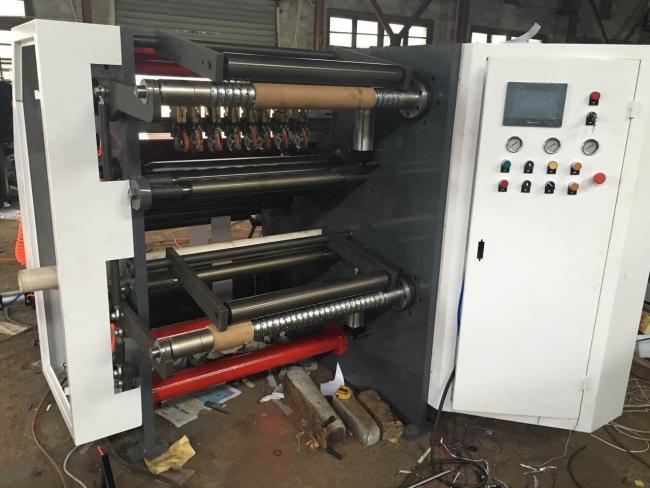

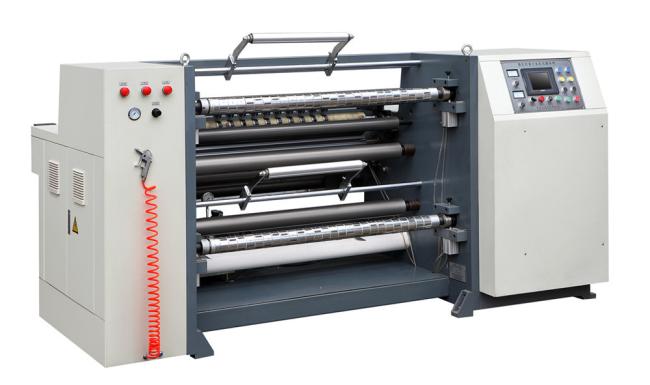

800B Jumbol Roll Slitting Machine With Web Guide System



Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.





Main features

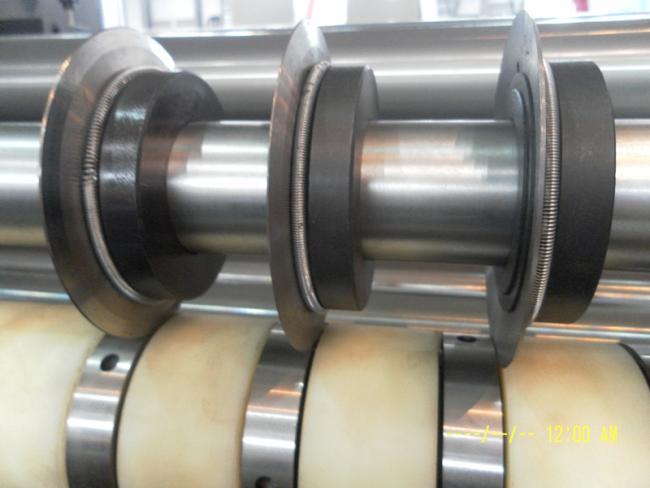

1) 10 sets of round knife in the machine(If you slit film, we will offer you 10 sets straight knife)

2) Unwinding and rewinding controlled by magnetic powder brake and clutch

3) Use web guide system

4) Auto tension control

5) Have meter counting

6) Use frequency inverter to control the speed

7) PLC control system, touch screen operate

8) With auto loading system







Main Technical Specification:

Max. web width 800mm
Max. unwinding diameter 600mm
Max. rewinding diameter 500mm
Min. itemize width 20mm
Slitting precision ±0.2mm
Cutting speed 5-200m/min
Overall dimensions(L*W*H) 1.8*1.5*1.5m
Machine weight 1000kg
