Aluminum Alloy Portable Foldable Electric Wheelchair With Lithium Ion Battery



Model: DYN30F (D07F)

Don't let your legs stop you from going far!!



Description

Electric wheelchair users are the elderly and disabled.Especially the elderly with the growth of age, the body gradually degradation of various functions, legs and feet are not flexible, walking stability is poor, using the hands to push the wheelchair or need family members to carry out, they have been powerless.

Therefore, choose a high-quality electric wheelchair can be driven their own, to increase the range of activities, improve the ability to take care of themselves.No longer dependent on the family for implementation.





The product specifications you cared most

Net Weight with 1 standard battery pack	20.5kg (45 lbs)
Max Speed	6.5 km/hr (4 miles/hr)
Maximum Seat Capacity	100kg (220 lbs)
Seat Width	45cm (17.7”) between armrests
Seat Depth	42cm (16.5”)
Seat Height From Ground (Front)	49cm (19.3”)
Seat Height From Ground (Back)	47cm (18.5”)
Turning Radius	75cm (29.5”)
Folded Size L X H X W	30cm x 71cm x 60cm (11.8” X 28” X 23.6”)
Opened Size	91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”)
Packing Size	35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”)
Max Distance / Full Charge	~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery
Charge Time (for 1 battery)	4 hours
Slope Capability	13˚
Battery Type	Soft Pack Polymer Lithium Ion Battery
Motor Type	Latest Brushless Motor
Motor Power	150W x 2
Front Wheel	7”
Rear Wheel	8”
Frame Material	Quality Aluminium Alloy
Rear Tire Type	Rigid PU tyre
Armrest	Raisable
Footrest	Foldable
Backrest	Foldable

*Error and uncertainty in measurement



Applicable people































































Product Advantage

1. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.

2. Foldable footrest - Convenient for Up and down the wheelchair.

3. Foldable frame - Convenient for transportation and stock.

4. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.

5. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.

6. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.

7. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.

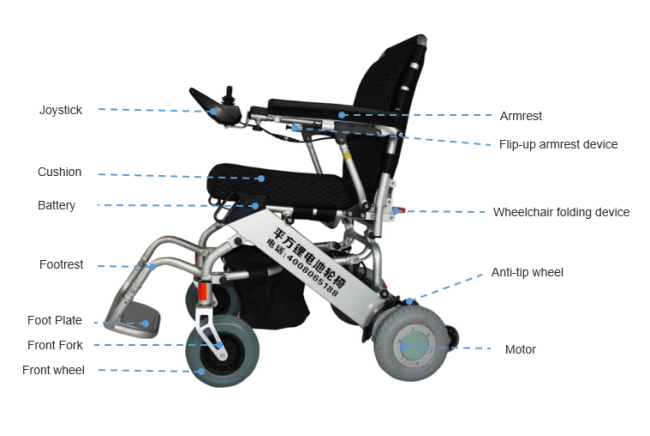

Wheelchair Details
