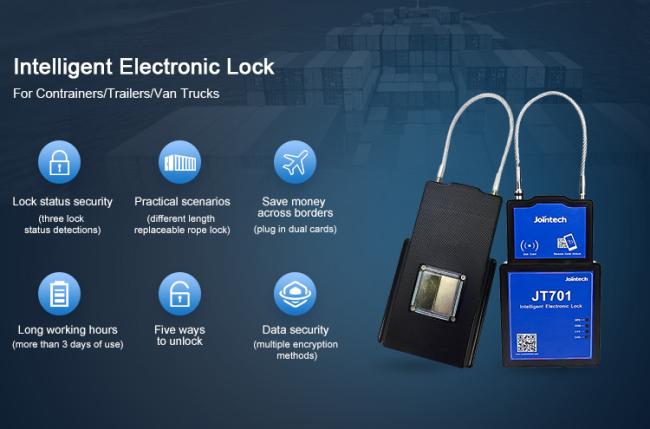

Electronic Intelligent Container Seal Gps Smart Tracking Lock Tracker



Container seal gps tracker JT701 for for container real time tracking and door lock control cargo security protection.

JT701 is the electronic lock with GPS tracking function, it can be tracked in real time, and unlocked by RFID card / SMS / GPRS command 15000mAh battery.
It has been widely used for container transit, cargo tracking live, trailer and asset monitoring, etc



SPECIFICATION:

Item	Note

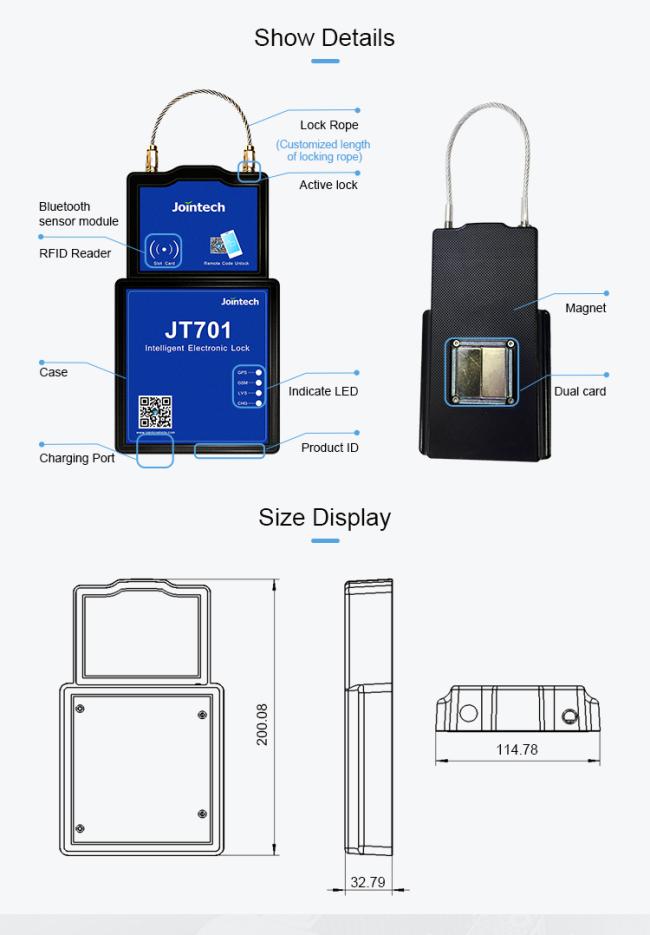

Size	195mm x 114mm x 37mm
Weight	700g( Include main unit, antenna, battery, shell)
Material	Engineer plastic
GPS Module	Ublox MAX-7Q
GSM module	Quectel M35

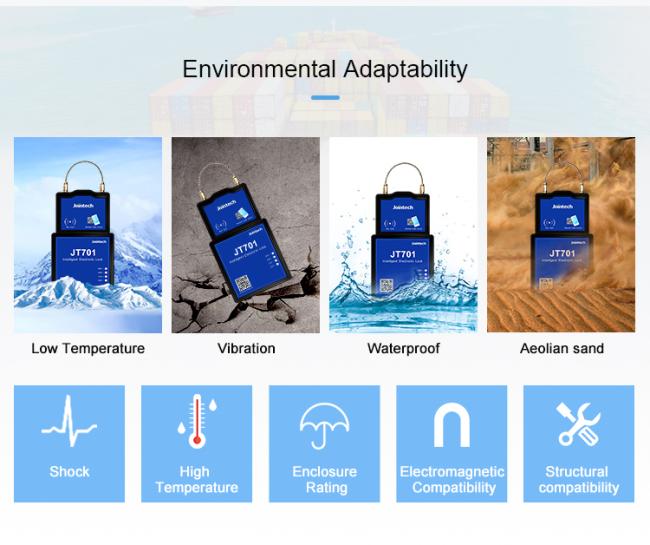

Working temperature	-20°C -- +60°C
Store temperature	-40°C -- +80°C
Humidity	5%-99%
Standard battery	Rechargeable battery 15000mAh
Average working current	<90 mA
Average current stand by	<100uA
Waterproof standard	IP67
Transmission mode	Support TCP(GPRS) or SMS(message)

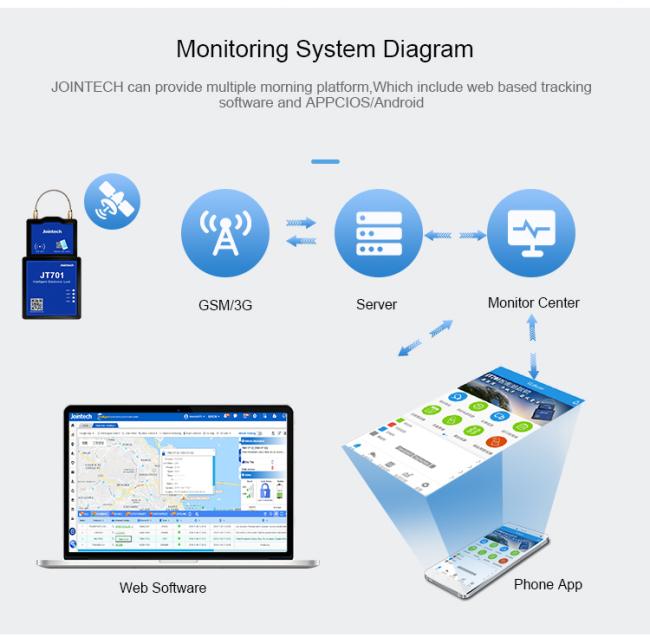

Monitoring System Diagram:

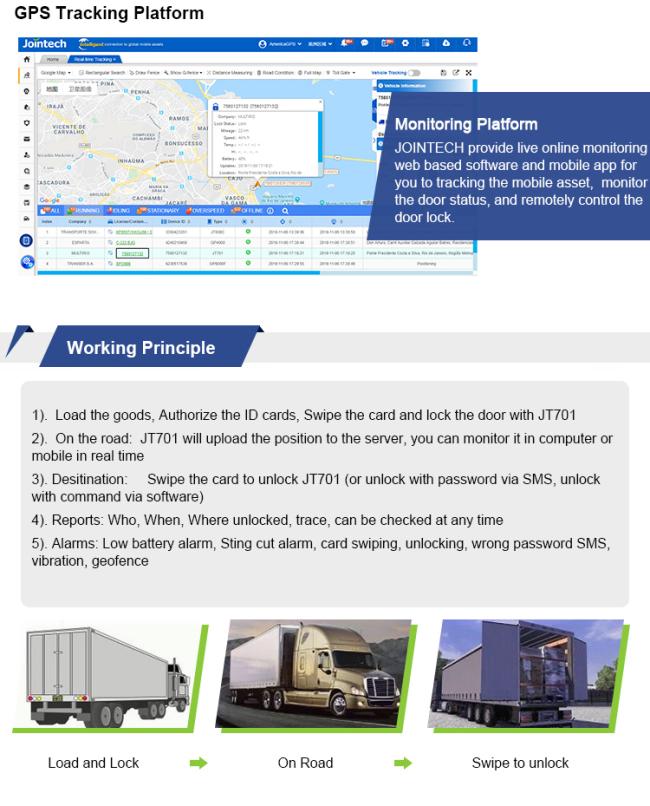

Jointech can provide multiple monitoring platfom, including web based GPS tracking software and fleet managment system.

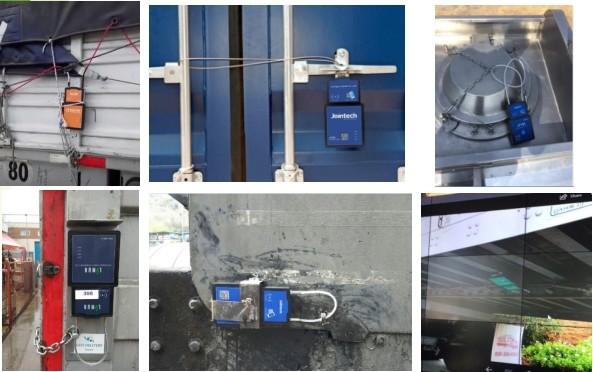

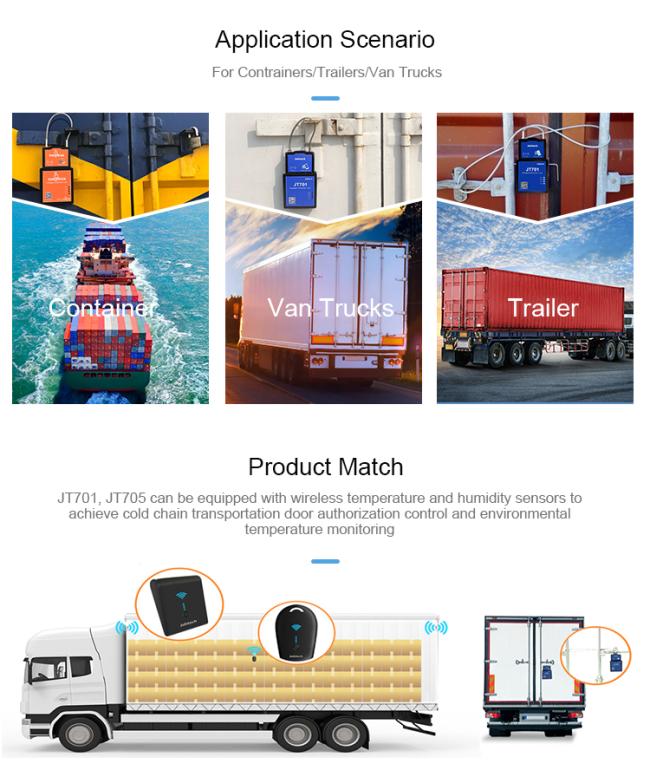

Application Scenario:



Container

Trailer

Van truck

Refrigerator Lorry

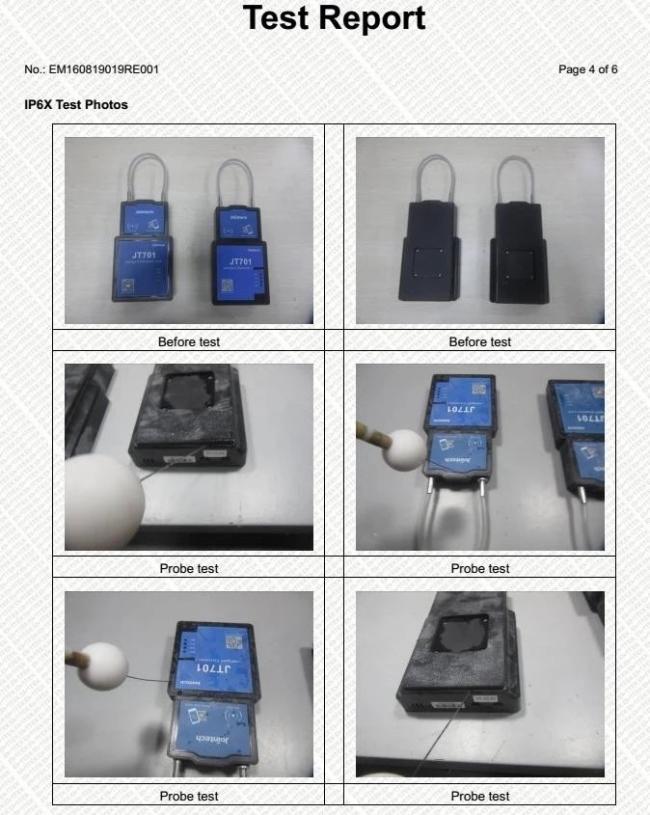

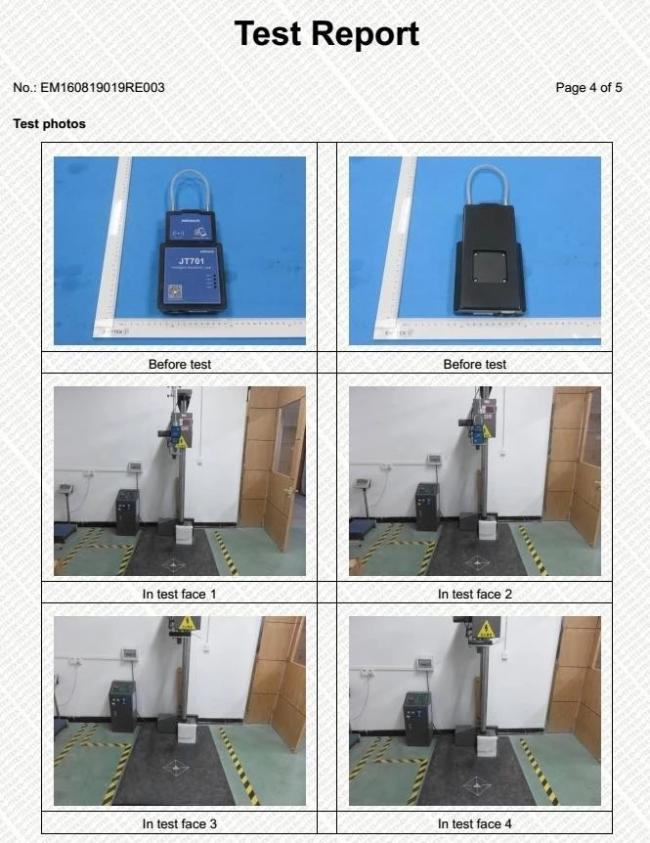

Product Test:





Company Profile:



The company is focused on providing networking segments in mobile asset monitoringand management solutions.  After years ofdevelopment and accumulation, the company has developed a complete set ofintelligent hardware and mobile asset management software cloud managementplatform, providing the market with software and hardware products and services, which is advanced, practical, and regardenergy consumption and asset security management as the core value.

RFQ:



Q: Do you have your own factory?

A: Yes, we are manufacturer in China for over 15 years located in Guangdong, China

Q: Why choose us?

A: We have worked with 50 customers from Fortune 500, which include Carefour, Dia, DHL,SGS......etc,
in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
assets monitoring field.

Q: Do you have your own tracking platform?

A: Yes, we can provide not just web based tracking software, but also IOS/Android APPS

Q: Do you provide customized hardware and software?

A: Yes, we can provide not just customized hardware, but also software funcationalities.

Q: What's your delivery time?

A: For samples, 2-4 days, bulk order, 7-15 days generally
