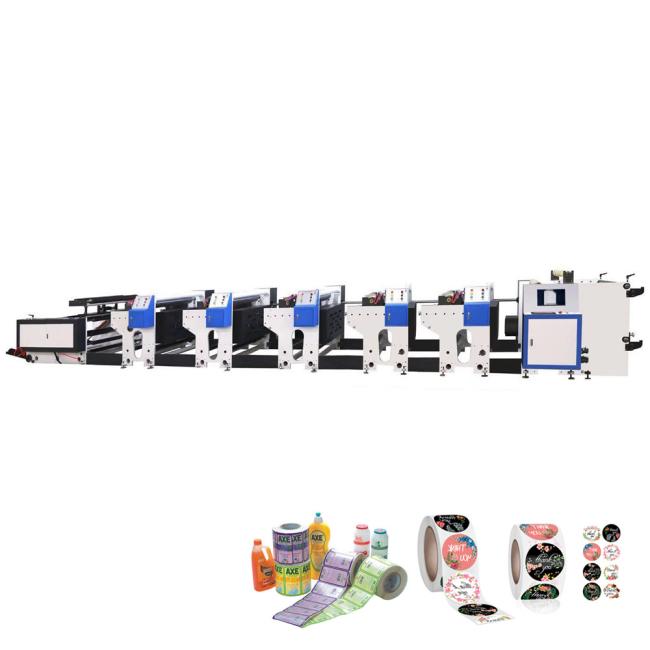

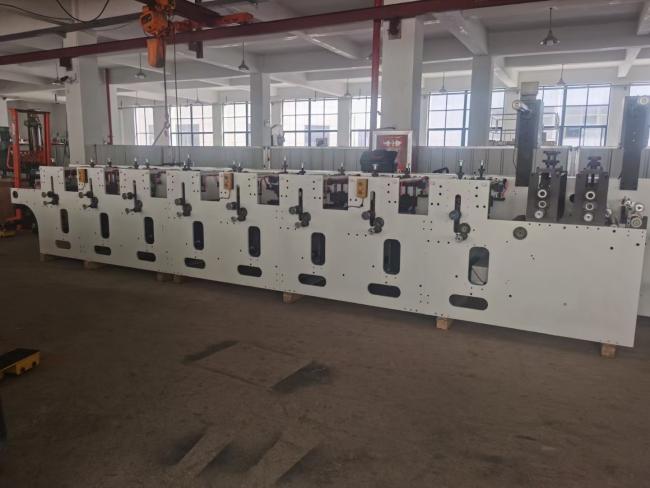

High Speed 800mm Five Color Leaflet Manual Flexo Printer With Turn Bar System

Main features

  • Ceramic anilox cylinder to transfer the ink
  • Automatic magnetic powder brake controller for unwinding & rewinding
  • Tension controller for unwinding
  • Tension controller for rewinding
  • Printing unit: 360°Plate-adjustment
  • IR dryer each printing unit
  • Web guide system in the machine
  • 3 inch air shaft both unwinding and rewinding
  • Frequency converter for speed controlling
  • 5 plate cylinders and 5 ceramic anilox rollers



Main technical specification:

Model RTIN-800-5H
Printing speed 150m/minute
Printing color number 5 color
Max width of paper 800mm
Max printing wide 800mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-635mm
Precision of overprint ±0.1mm
Overall dimension 4.0(L)×1.6(W)×1.5(H)m
Weight about 3500kg





Optional parts:(can add as your request)



Printing unit number, up to 10 colors;turn bar device;Slitting set;Video monitor;Rotary die cutting set;Cold laminating



Material details:

Printing material paper,foil, PVC,
Printing ink UV ink
Printing plate thcikness 1.7/2.84mm
















See All

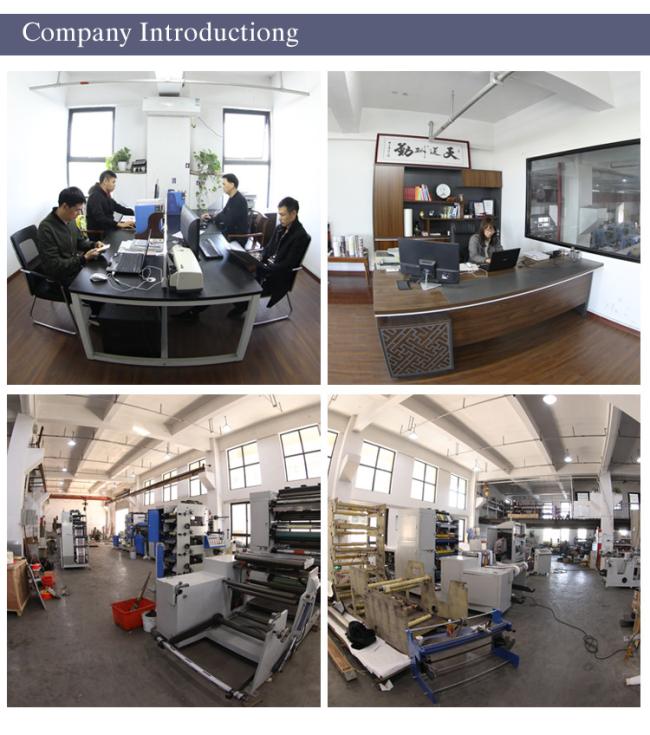

Ruian Ruiting Machinery Co., Ltd.

Ruiting Machinery Co.,LTD is mainly produce flexo printing machine, slitting machine, die cutting machine, cross cutting machines and so on machines.
CE,CE
  • Annual Revenue : 100-150 USD
  • Employees : 5~15
  • Year Established: 2015
  • Manufacturer, Trading Company
