UEW 0.12mm Enameled Wire Self Bonding Wire
We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire
APPLICATION
Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.
TEST REPORT
2-SFK5W 0.120mm
|
Characteristics |
Technical requests |
Test Results |
|||
|
Min. |
Ave. |
Max. |
|||
|
Conductor Diameter |
0.120± |
0.002 |
0.12 |
0.12 |
0.12 |
|
(Basecoat dimensions)Overall dimensions |
Max. 0.146 mm |
0.144 |
0.144 |
0.145 |
|
|

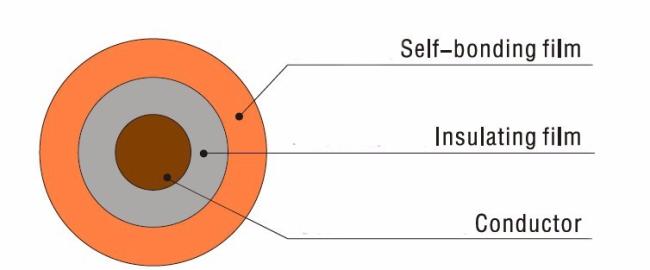

Insulation Film Thickness |
Min. 0.011 mm |
0.013 |
0.013 |
0.013 |
|
|
Bonding Film Thickness |
Min. 0.010 mm |
0.011 |
0.011 |
0.012 |
|
|
Continulty of covering |
Max.60 pcs |
Max. 0 |
|||
|
Flexibility |
/ |
/ |
|||
|
Adherence |
no crack |
Good |
|||
|
Breakdown Voltage |
Min.3000 V |
Min. 4865 |
|||
|
Resistance to Softening(Cut through) |
Continue 2 times pass |
200℃/Good |
|||
|
Solder test(390±5℃) |
Max.2s |
Max.1.5s |
|||
|
Bonding Strength |
Min.20g |
35g |
|||
|
Electrical Resistance(20℃) |
Max.1550Ω/km |
1508 |
1508 |
1509 |
|
|
Elongation |
Min.26% |
29% |
30% |
30% |
|
|
Breaking Load |
Min. |
/ |
/ |
/ |
|
|
Surface appearance |
Smooth |
Good |
|||
|
Test Result |
OK |
Conclusion |
Approved |
||
