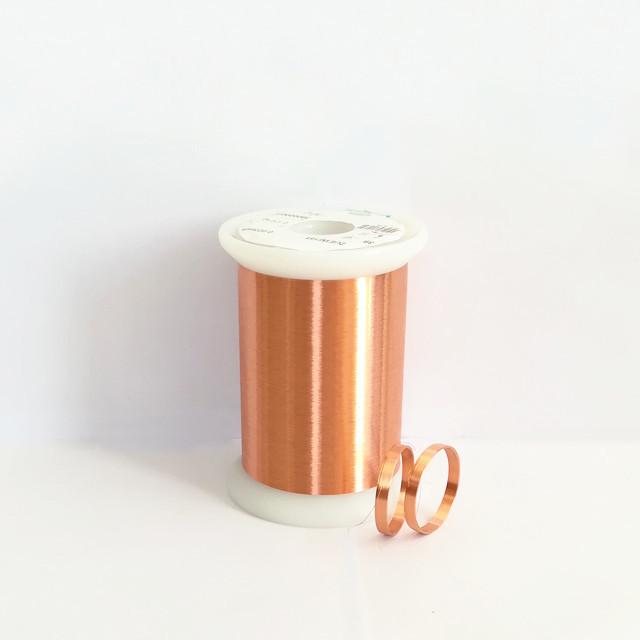

0.02mm Utra Fine Enameled Copper Wire



We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...











Characteristics
Technical requests
Test Results

Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.020±
0.001
0.02
0.02
0.001


Overall Diameter
0.022-0.024
0.023
0.023
Conductor Resistance
≤60.810Ω/m
56.812
56.403
Elongation
≥8%
10%
10%
Breakdown Voltage
≥130V
212
247
Pinhole Test
≤ 8 holes/5m
1
0
Test Items
Test Items

Results
Conclusion:Approved
Adhesive
Adhesive

OK
Approved
Cut-through
Cut-through

OK

Heat Shock
Heat Shock

OK
Audit by
Solder Ability
Solder Ability

OK

Solvent Resistance
Solvent Resistance

OK







Tianjin Ruiyuan Electric Material Co,.Ltd

A-level supplier approval from German customers,TUV
  • Annual Revenue : 2Mllion-3Million USD
  • Employees : >100以上
  • Year Established: 2002
  • Manufacturer, Distributor/Wholesaler, Trading Company
